Description

Single Head Diamond Grinder 415V(AKA Asuga, DFG 250 and BG 250) is excellent for a vast array of jobs including grinding or keying surfaces like concrete, asphalt, resin and screeds. These Single Headed Diamond Grinders are more powerful and substantial than any single phase grinder. We have both single and twin speed models that use the popular 10” (25 cms) grinding disc with 20 diamond segments.

415v Single headed diamond grinders are prone to leaving swirl marks which may be a problem if grinding is a part of the finish but should not be, if grinding is preparation for future thick coatings to be laid on top.

This Single Head Diamond Grinder is also excellent for substance removal if fitted with a 5 shoe PCD plate. This floor grinder is powerful and yet easy to manoeuvre and by slowly swinging it from side to side, it can cover medium sized areas reasonably quickly. It has a 50 mm dust outlet for direct connection to a dust control unit. All our machines have been adapted and fitted with a solid rubber dust skirt rather than the manufacturer’s nylon brush skirt.

Diamond and PCD plates can be hired on wear charge basis. Please contact us for details. The single head works off a 3 phase 32 amp 415 v 5 pin socket.

YouTube Videos for Single Head Diamond Grinder

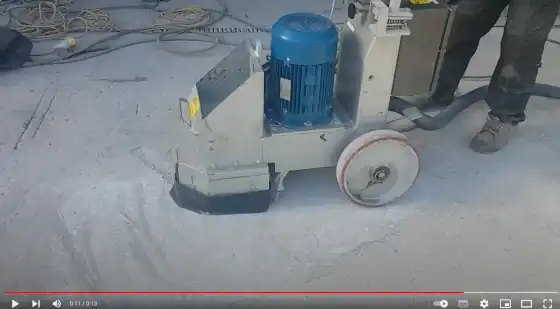

Grinding concrete flooring using 415v 3 phase Single headed diamond floor grinder

Rates quoted are for one week. After a week a 25% daily charge is applied on days 8, 9 and 10 and then a full 2nd week’s hire charge is applied.

FAQs

Q – Will this floor grinder leave me with a beautifully smooth. A – No, being a single head grinder, it has a tendency to leave light swirl marks. By keeping the machine constantly moving these can be reduced but will be noticeable if you propose to leave the concrete surface untreated or apply a lacquer or thin epoxy paint system. In which case, a light going over with a planetary grinder will easily remove swirl marks.

Q – Which is the most suitable vacuum dust control unit for this floor grinder. A –  We recommend the 110-v 3 motor dust control unit with either the bin system or Longopac system.

Q – What power supply does this floor grinder require? A – 3-phase, 415-v (white box with a red socket). It comes with a 32-amp 5 pin plug. This grinder will work off 16 amps and even a 4 pin supply but will need an adapter lead, available upon request.
